35T Coil Weight Metal Slitting Line Medium Gauge Accuracy ±0.3mm Ф260mm Blade Shaft

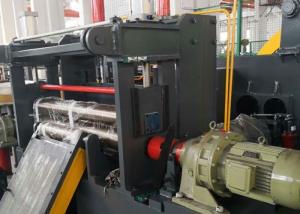

Metal Slitting Line introduction
Being one of the renowned and reputed manufacturers and exporters of slitting line machines, we offer wide array of Steel Coil Slitting Line machine. This type of slitting line machine is basically used for recoiling and uncoiling work in various industries.
Our offered Steel Coil Slitting Line machine is highly acclaimed at global market place for its excellent durability, automatic regularities and high efficiency. A wide range of slitting line machines is manufactured at our unit with many different specifications to meet diverse industrial requirements.
- The thickness can range from the thinnest down to 1.0 mm, to the thickest up to 10mm
- Strip Width, from the narrowest 400 mm to the widest 2200 mm
- Coils Weight, up to 35 tons
- Line Speed, up to 100 m/min.
- Operator Safety.
- Highest Production Outcome
- Ease of Operation and Maintenance
These knives partially penetrate the coil stock causing a crack or fracture on both sides of the stock, separating the mults from one another. Rubber stripper rings are also employed depending on the material thickness to attain a good edge so no burr is present that will hinder downstream operations. As the material is slit, the far outside edges of the coil have edge trim.
This edge trim is taken up on a scrap winder. If the material to be slit is extremely thin, a looping pit can be used to take up the varying thickness of the mults as the edge cuts are generally thinner than the center cuts. The thin the material, the longer the lineal footage in the master coil.
The looping pit will take up the additional volume prior to entering the tension stand. The tension stand is located prior to the recoiler. A tensioning device is needed because the master coil is crowned or larger in diameter in the center of its width than at the edges.
Metal Slitting Line Specification
| Model No. | RS 1.0-6.0 | RS 2.0-8.0 | RS 3.0-10.0 |
| Coil Material | CR Coils , HR Coils, S.S Steel Coils, GI Coils , AL Coils, Copper Coils Picking Oil Coils |
| Coil Thickness | 1.0～6.0mm | 2.0～8.0mm | 3.0～10.0mm |
| Line Speed | 0～110m/min | 0～50/80m/min | 0-30/50m/min |
| Coil Weight | ≤30T(35T) | ≤30T(35T) | ≤30T(35T) |
| Coil I.D | Φ508,φ610,φ760mm | Φ508,φ610,φ760mm | φ508,φ610,φ760mm |
| Coil O.D | ≤φ2200mm | ≤φ2200mm | ≤φ2200mm |
| Strip Width | ≥30mm | ≥50mm | ≥70mm |
| Number of Strip | 4～15 | 5～20 | 5～18 |
| Slitting Accuracy | ±0.3mm | ±0.3mm | ±0.3mm |
| Blade shaft | Ф260mm | Ф280mm | Ф300mm |
| Electrical Control System | PLC Automatic control | PLC Automatic control | PLC Automatic control |
Customized slitting lines for every different kind of metal strip and in all required dimensions would be available. Metal Slitting Line Main Technical Specifications
| COIL/ROLL DETAILS | Material | HR, CR, SS, GI, PPGI, Copper |
| Tensile Strength | δb≤600Mpa,δS≤360Mpa |
| Coil/Roll thickness | 1-10mm |
| Steel Coil/Roll width | 500-2200(Max) |
| Coil/Roll I.D | Φ500-760 mm |
| Coil/Roll O.D | Φ2000mm(Max) |
| Steel Coil/Roll Weight | 35T(Max) |
|
Slitter parameters | knife pivot diameter | Ф220 mm |
| Knife pivot material | 40Cr |
| Blades specification | Φ220mmXφ360mmX20mm |
| Blade material | 6CrW2Si |
| Max slit quantity | 4 pcs (4mm) 20 pcs(1mm) |
| Width precision | ≤±0.05mm |
|
Other parameters | Power | 380V/50Hz/3Ph(Customized) |
| Line speed | 0-80m/min |
| Capacity | 360 KW |
| Whole line Dimension | 45m(L)X10m(W) |
| Line direction | From right to left(Face to machine) |
| Machine color | Blue |
